One big room and one small room on the same system usually means a compromise. Size for the big room and the small one overshoots and cycles. Size for the small one and the big room never catches up on the hottest or coldest days.

This configuration is deliberately uneven: a 12,000 BTU unit for the larger space and a 9,000 BTU unit for the smaller one, both fed by the same 18,000 BTU condenser. Each is sized to its own room instead of splitting one capacity down the middle.

What is in the boxes

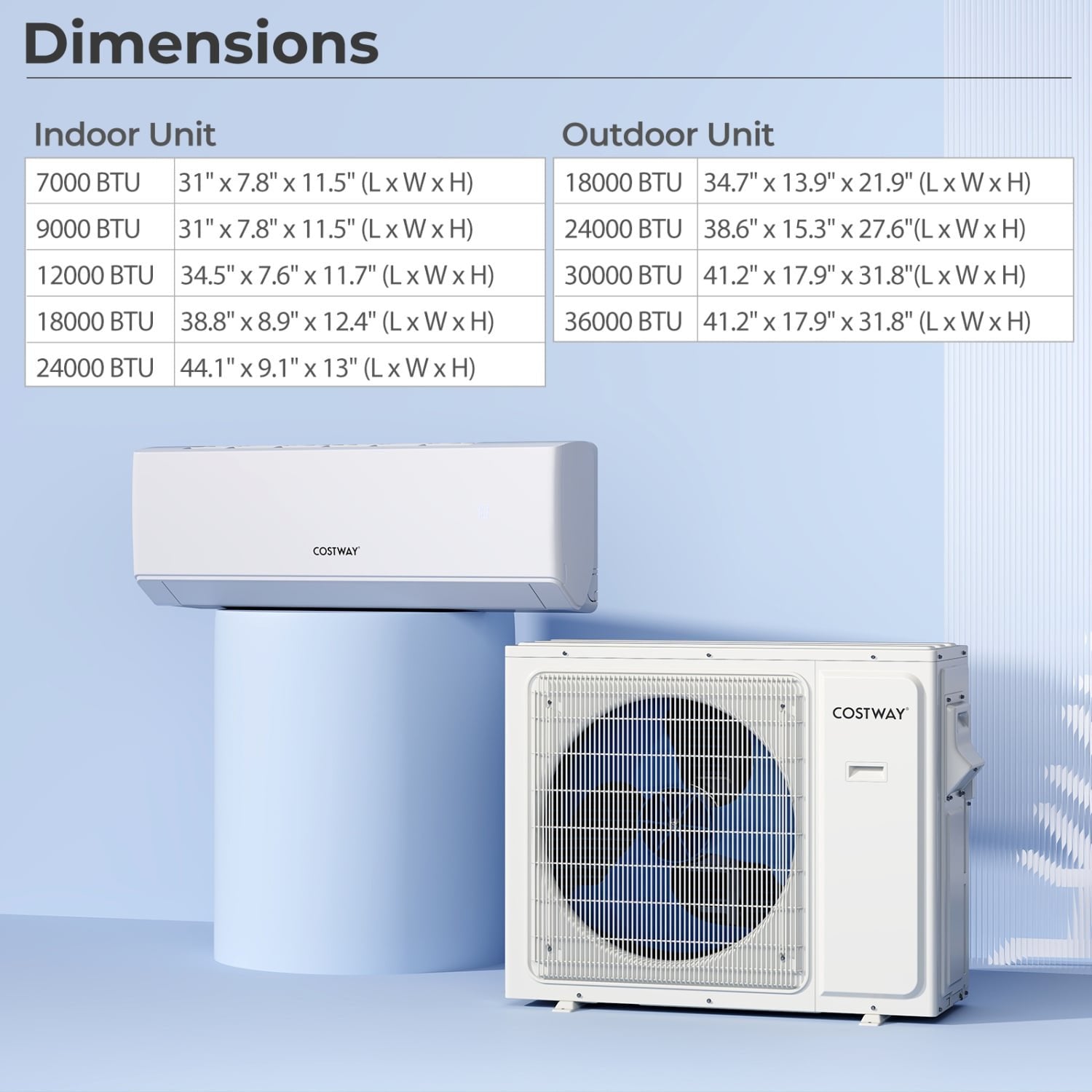

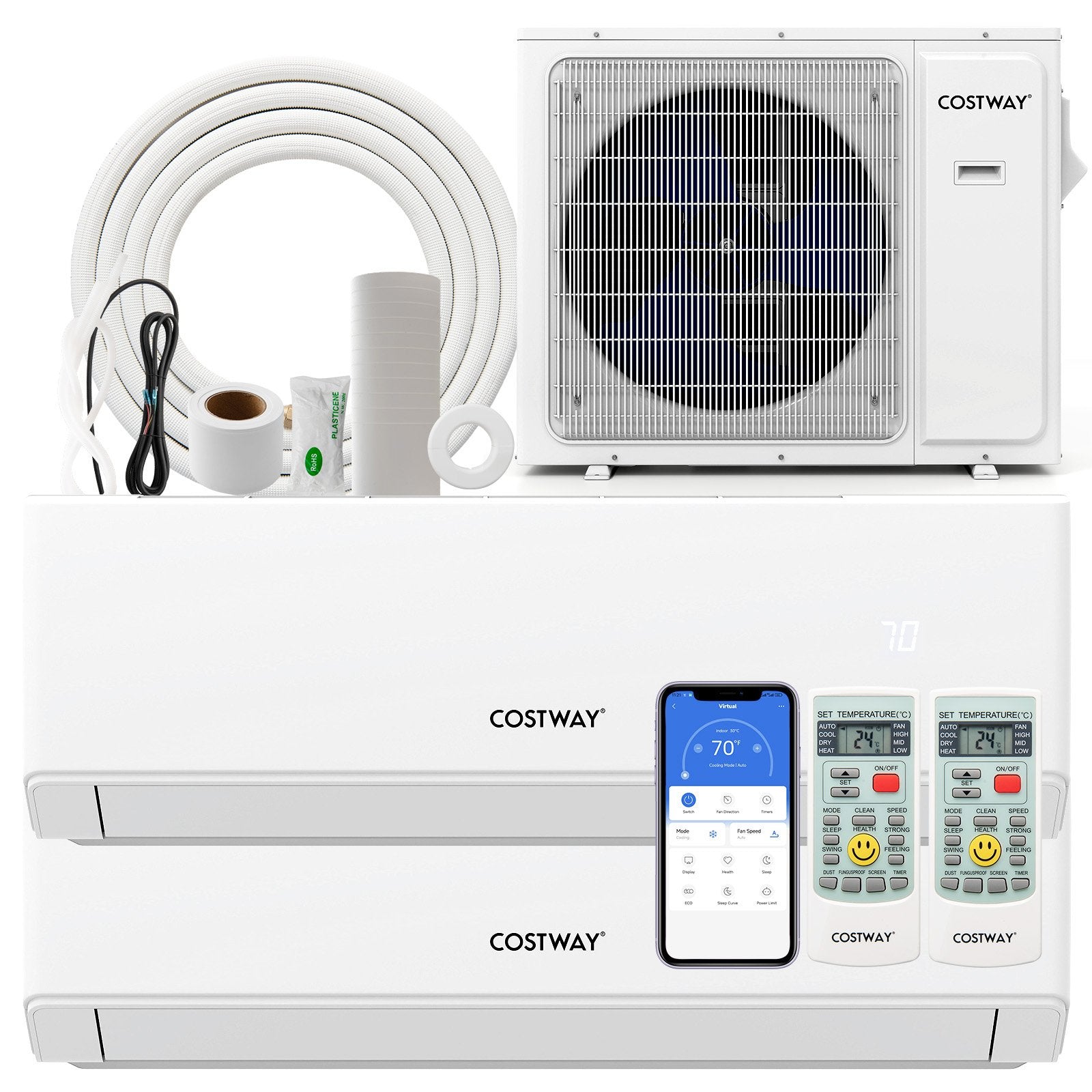

The carton holds one outdoor condenser, two wall mounted heads, and two 16 ft copper line sets (3/8 in gas, 1/4 in liquid), two 13 ft communication wires, two 6.5 ft drain hoses, two remotes, two mounting plates, wall sleeves, caps, tape, putty and screw kits. The outdoor unit measures 34.7" x 13.9" x 21.9" and weighs 75 lb. The indoor units are a 9,000 BTU at 17.5 lb and a 12,000 BTU at 20 lb, measuring 31" x 7.8" x 11.5" and 34.5" x 7.6" x 11.7".

Matching capacity to rooms

The 9,000 BTU unit is a 0.75 ton that pulls 35.5 pints a day out of the air at 30 dB; the 12,000 BTU unit is a 1 ton at 51 pints a day and 32 dB. Those are the manufacturer's nameplate figures. Natural Resources Canada asks for a recognised load calculation, CSA F280, before a heat pump is chosen, because floor area alone does not tell you what a room actually loses on a cold night.

What happens once it drops below freezing

Heating output on any air source heat pump falls as the outdoor air gets colder. The manufacturer rates this outdoor unit to keep heating down to -25 C (-13 F) and to keep cooling up to 52 C (125 F), and fits a chassis heater that keeps the base pan from icing up. What that figure does not tell you is your balance point, the outdoor temperature below which the heat pump can no longer carry the load on its own. Natural Resources Canada describes that point and the backup heat that takes over below it; your installer works it out for your house.

Filters, noise and day to day control

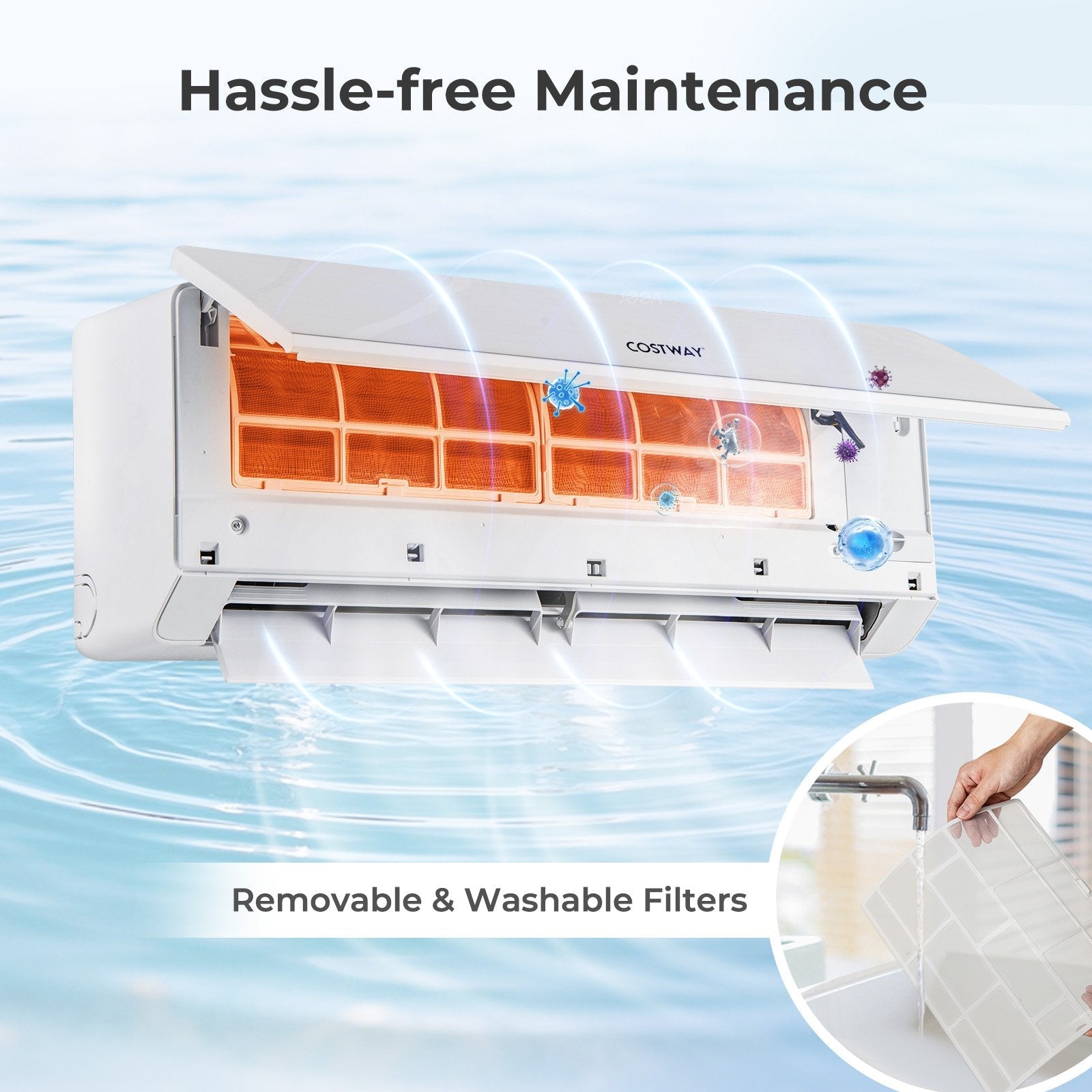

Filters slide out of the front panel and rinse under the tap, which is the maintenance most owners actually do. The 9,000 BTU head is rated at 30 dB and the 12,000 BTU head at 32 dB on their quietest settings. Controls run through the wifi app or the backlit remote, with 6 modes (auto, cool, heat, dry, fan and sleep) and 5 fan speeds, a 24 hour timer and a set range of 60 F to 90 F.

Each indoor unit has its own controller and its own target temperature, so one room can sit at 20 C while the other sits at 23 C, from one outdoor unit and one circuit. Both zones share that one compressor: output is divided when they call at once, and the manufacturer does not publish simultaneous heating and cooling for this system, so do not plan on it.

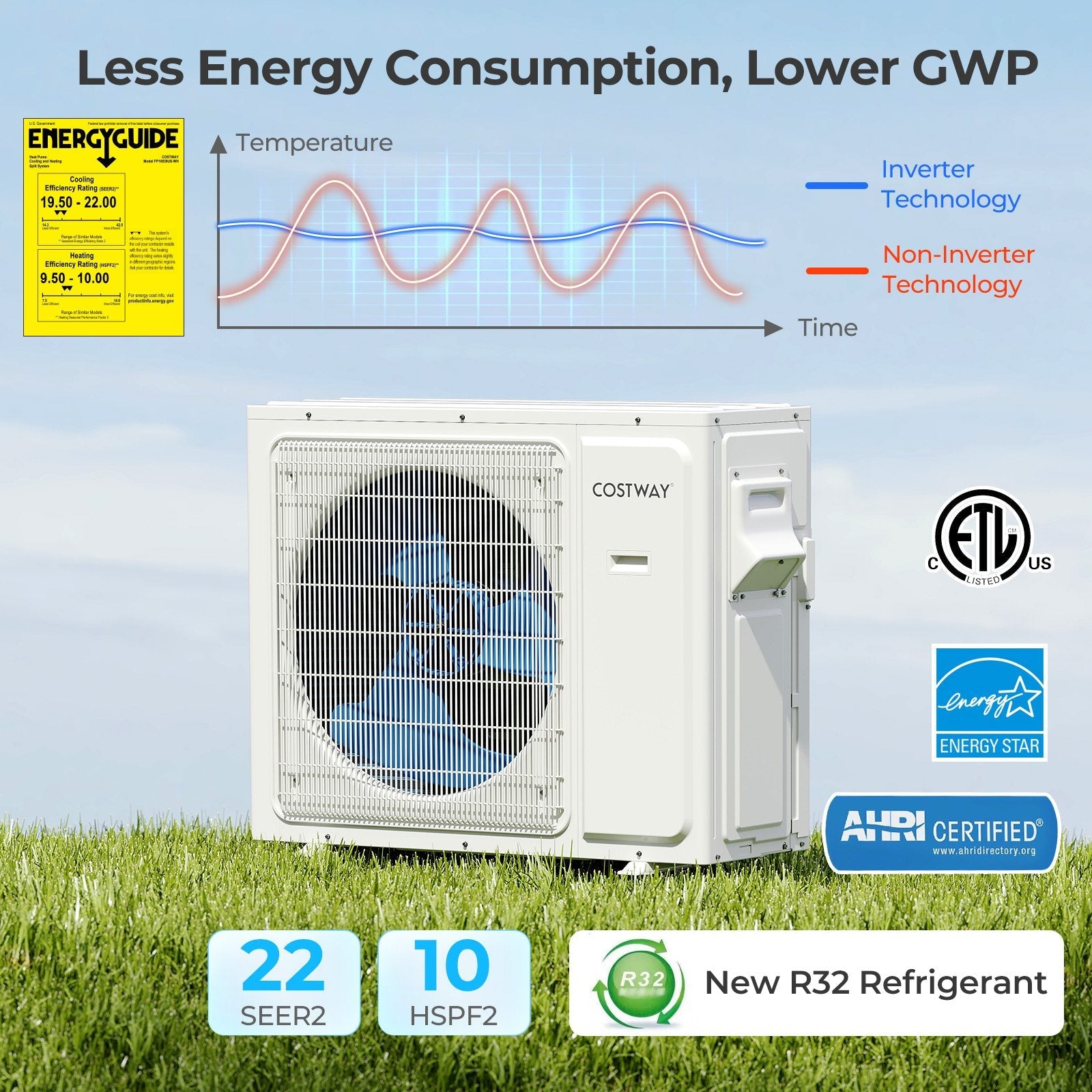

Rated 22 SEER2 for cooling and 10 HSPF2 for heating. The compressor ramps its speed up and down to hold a temperature instead of switching hard on and off.

R32 carries a global warming potential of 675, well under a third of the R410A it replaces, and is rated A2L, which means low toxicity and mild flammability.

Rated to keep heating down to -25 C (-13 F) and cooling up to 52 C (125 F). The heated base pan is there to stop meltwater freezing under the coil during a defrost cycle.

Set and monitor each zone from the app or from the remote that ships with each head. A 24 hour timer handles schedules, and the set range runs 60 F to 90 F.

Two 16 ft copper line sets, communication wire, drain hoses and mounting hardware ship with the system. The manufacturer does not publish a maximum line length for this model, so have your installer confirm the runs before the holes are cut.

This is not a plug in appliance. It needs a dedicated 208-230V, 60 Hz, single phase circuit and a disconnect at the outdoor unit, wired by an electrician. The indoor units are fed from the outdoor unit, not from separate outlets.

The manufacturer lists this series as Energy Star, AHRI and ETL certified. Certification marks also appear on the specification photo in the gallery.

Ships from our United States warehouse. Delivery to Canada usually takes 8 to 14 business days, with no customs charges or duties to pay on arrival. Free shipping on orders over $150, a flat $18.90 below that, and tracking by email as soon as it leaves.

Return within 14 days of purchase, unused, in original condition and packaging.

Covered directly by the manufacturer under their warranty terms for material and manufacturing defects.

Found it cheaper at a Canadian retailer? Send us the link and we will match that price. It has to be the same item, in stock, sold and shipped inside Canada, and compared like for like on what comes in the box.

Older homes on hot water or electric baseboard get cooling and heat pump heating without a duct being cut, since the refrigerant lines need only a small wall penetration.

A 12,000 BTU wall mounted head and a 9,000 BTU wall mounted head let a large open area and a single room each get what they need from one outdoor unit.

Refrigerant work is regulated in every province, and the manufacturer requires a professional technician. This suits buyers who already have an HVAC contractor and an electrician lined up.

What we stand behind

• One outdoor unit, two indoor units and two 16 ft line sets in the box
• Ships from our United States warehouse, free shipping over $150, and 14 day returns unused in the original packaging.
• 14 day returns on unused product in original packaging
• Covered by the manufacturer's warranty for material and manufacturing defects

Can a homeowner install this, or is a licensed installer required?

The manufacturer states that professional installation is required for this system. In Canada, handling refrigerant is regulated province by province, and provinces require trained service providers for installing, servicing and decommissioning equipment that contains halocarbons. Ontario, as one example, restricts removing, discharging and disposing of refrigerants to certified technicians and requires a separate trade Certificate of Qualification to actually work on the equipment. Budget for an HVAC contractor and an electrician.

What electrical supply does it need?

A dedicated 208-230V, 60 Hz, single phase circuit, not a wall outlet. On a multi zone system the indoor units are powered from the outdoor unit rather than from their own plugs, and code calls for a disconnect at the outdoor unit. An electrician sizes the breaker and wire from the unit's own nameplate.

What size room does each indoor unit suit?

The manufacturer rates the 9,000 BTU unit at 0.75 ton and the 12,000 BTU unit at 1 ton, but publishes no square footage for this series, so we are not going to invent one. Natural Resources Canada asks for a recognised load calculation such as CSA F280 before a heat pump is selected; your installer runs it on your own rooms.

How well does it heat in a Canadian winter?

The outdoor unit is rated to keep heating down to -25 C (-13 F), and a chassis heater keeps the base pan clear. Output still drops as it gets colder: Natural Resources Canada describes the balance point, the outdoor temperature below which a heat pump can no longer carry the whole load and backup heat takes over. Where that point falls depends on your house, not on the equipment alone, so ask your installer to work it out.
